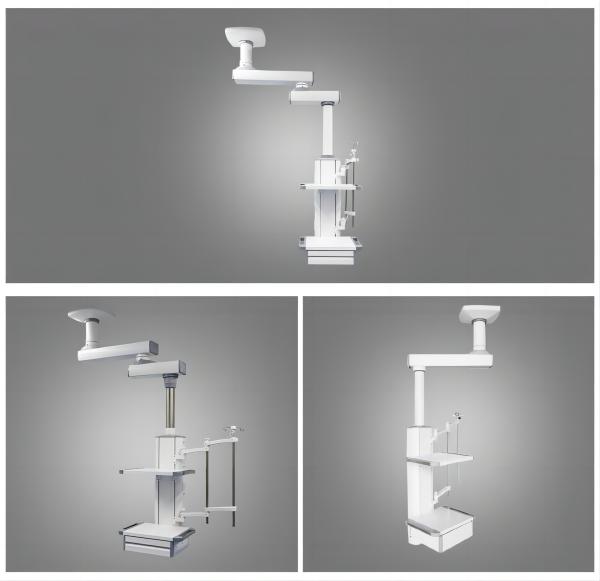

Gynecology And Obstetrics Medical Surgical Equipments 340 Degrees Movable Surgical Pendant

Gynecology And Obstetrics Integrated Bed


Introduction

The movable surgical pendant is a compact workstation for medical gas, power, instrument platforms, infusion pump stands, and network output terminals in modern hospitals. Its four-wheel ground design makes it easy to move and use without manual installation. It can be moved to any
area and rotated 340 degrees for convenient use, making it an ideal auxiliary platform for medical staff.
Expert surgical pendant is simple and compact, perfect for hospitals. It contains medical gas, power, instrument platforms, infusion pump stands, and network output terminals. The ceiling suspension allows for a 340-degree rotation with a brake to prevent drifting. Medical staff can easily move and lock the carrier in position. It is an essential device for modern hospitals.

Application

The medical column is a practical and compact equipment designed for ICU.
It can be configured with one or two beds, and equipped with a multi-layer instrument platform and infusion stand. Optional accessories include injection pump stands, lighting, teaching and remote consultation systems. It is an ideal device for small hospitals or ward areas with limited space.

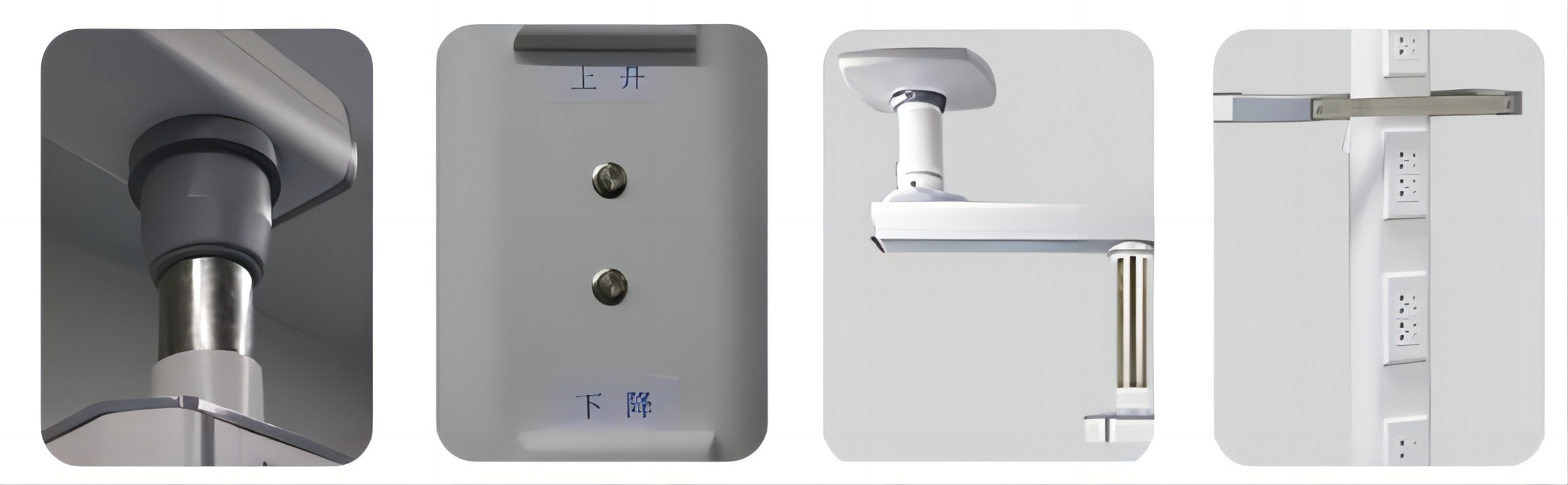

Medical Pendant Features

• High-strength aluminum alloy
• Easy silding and postioning
• Terminal pluggable 20,000 times
• Optional with various gas terminals
• Rotation angle ≤ 340°
• Bearing load up to 220kgs

Parameter

Single/Double-arm surgical pendantMovable surgical pendantSingle/Double sided medical column
Arm movement range (radius): 700-1100mm (can be configured according to the requirements of the hospital)Single sidedElectric vertical lifting
2 oxygen3 kinds of gas terminals:3 kinds of gas terminals:
2 compressed air2 oxygen2 oxygen
2 negative pressure suction2 compressed air2 compressed air
plug and pull 20,000 times2 negative pressure suction2 negative pressure suction
2 layers (height adjustable)plug and pull 20,000 timesplug and pull 20,000 times
Size :510* 460* 25mm2 layers of instrument platform2 layers (height adjustable)
round corner anti-collision designSize: 490*590*25mmSize:510*460*25mm
Horizontal rotation angle: 0 ~ 340 °load 60kg/ layer; 1 drawerround corner anti-collision design
10 power socketsHorizontal rotation angle: 0 ~ 340 °Horizontal rotation angle: 0 ~ 340 °
2 grounding terminals10 power sockets, 2 grounding terminals10 power sockets, 2 grounding terminals
1 network interface1 network interface; 1 infusion rack with1 network interface;1 infusion rack with adjustable
1 infusion rack with adjustable heightadjustable height;1 infusion pump rackheight ;1 infusion pump rack
1 infusion pump rack
Standard configuration(optional according to customer requirements)

Gynecology And Obstetrics Medical Surgical Equipments 340 Degrees Movable Surgical PendantGynecology And Obstetrics Medical Surgical Equipments 340 Degrees Movable Surgical Pendant
