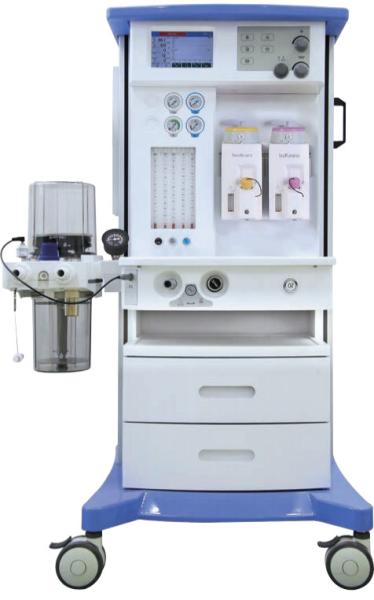

S6500 7" Screen Anesthesia System 25L/Min-75L/Min Anesthesia Workstation

S6500 Anesthesia System For Adult and Pediatric

Description & Application

The S6500 Anesthesia System is a versatile and adjustable device suitable for patients of all ages. It offers advanced monitoring and control functions to ensure safety and stability during anesthesia. It is designed for ease of use and patient safety in various settings, including ICUs, operation rooms, and anesthesiology departments. It provides professional design for inhalation anesthesia and respiratory management in adults, children, and infants. It combines proven ventilation technology with ergonomic features and integrates seamlessly with an advanced anesthesia table to streamline workflow.

Trust point

Provide customers with high-quality, cost-effective anesthesia machines.
Countless customer feedback has been positive.
Advanced manual one-button switch provides convenient electronic control interchange.
High precision flow meter for instant knowledge of fresh gas flow to patient.
Integrated breathing circuit design ensures easy operation and cleanliness.
Various working modes such as capacity control and pressure limitation, and a wide range of applications.
The vaporizer has temperature, pressure, flow compensation and self-locking functions to ensure safety at all times.
It has real-time pressure-time, flow-time cycle waveform diagram and high-precision oxygen concentration detection function.

Application

The S6500 anesthesia system has a wide range of application fields in operating rooms, intensive care units, anesthesiology departments and other related departments. Its advanced functions and performance, as well as its adaptability to patients of different ages, make it an ideal anesthesia device that can provide safe, stable and high-quality anesthesia management.


7" screen	Flowmeter	Oxygen sensor
7" screen displays information area, alarm area, monitoring area and setting area. 2-3 hours built-in backup battery. Intelligent three level alarming system with 14 alarm, visual and sound alarm information. 2 oscillograms: P-T, F-T.	5 Mechanical flowmeters: O2, Air, N2O. Fine control: 0.1-1 L/min Coarse control: 1-10 L/min	Oxygen sensor makes sure accurate parameters.

Bellow	Vaporizer	2 Cylinder Yokes
1500mL can applied to different patients. Volume of absorber: 1.5 L Integrated design makes installation easily	One or dual-position Choice: Halothane, Enflurane, lsoflurane, Sevoflurane	N2O Cylinder Yoke and O2 Cylinder Yoke are standard.
Pressure gauge	ACGO and fast oxygen supply	Brake
Pressure gauge shows pressure of centre gas system or gas cylinder.	Emergency situation and revival after operation.	4 casters with 2 individual brakes.
Optional
AGSS. Gas gauge for gas cylinders. Vital sign monitor, anaesthetic gas monitor. Hand held ETCO2 monitor or Vital sign monitor with ETCO2

Ventilation mode

IPPV, A/C, PCV,SIMV, SIGH, MANUAL

Ventilator parameter range
Flowmeter	O2 (0 ~ 10 L/min) N2O (0 ~ 10 L/min) or AIR (0 ~ 10 L/min)
Rapid oxygen supply	25 L/min - 75 L/min
Tidal volume	0, 20 mL ~ 1500 mL
Frequence(Freq)	1 /min - 100 /min
I:E	2:1 - 1:6
PEEP	0 cmH2O - 30 cmH2O
Pressure triggering sensitivity (PTr)	-20 cmH2O - 0 cmH2O (Based on PEEP)
Flow trigger sensitivity (FTr)	0.5 L/min - 30 L/min
SIGH	0 (off) 1/100 - 5/100
Apnea ventilation	OFF, 5s - 60s
Pressure limit	20 cmH2O - 100 cmH2O

Alarm and protection
The AC power failure alarm	Power failure or no connection
Internal battery backup low voltage alarm	< 11.3 ± 0.3 V
No tidal volume	≤ 5 mL within 6 s
High oxygen concentration alarm	19 % - 100 %
Low oxygen concentration alarm	18 % - 99 %
High airway pressure alarm	2 cmH2O - 100 cmH2O
Low airway pressure alarm	0 cmH2O - 20 cmH2O
High minute volume alarm	Adult (5 L/min ~ 20 L/min)
Low minute volume alarm	Paed (1 L/min ~ 15 L/min, 0 ~ 10 L/min)
Continuous pressure alarm	(PEEP+1.5 kPa) over 16 s
Suffocation warning	5 s - 60 s no spontaneous ventilation
The maximum limited pressure	≤ 12.5 kPa
Fan error	Show on screen
Oxygen deficit	Show on screen

Monitoring parameter
Frequence(Freq)	0 /min - 100 /min
Tidal volume (Vt)	0 mL - 2000 mL
MV	0 L/min - 100 L/min
Oxygen concentration	15 % - 100 %
Ppeak	0 cmH2O ～ 100 cmH2O
Cydn	1 mL/cmH2O ～ 1000 mL/cmH2O

Working condition
Gas source	O2, N2O, AIR
Pressure	280 kPa ~ 600 kPa
Voltage	100 ~ 240 V
Power frequency	50/60 Hz

Oscillogram

P-T (pressure - time)

F-T (flow - time)

P-V loop (pressure - volume loop)

Wooden case packing size

Wooden case packing size : L 760 * W 970 * H 1550 mm

G.W. :143 KG N.W. :82.5 KG CBM :1.33 m³
