19in FHD Monitor Surgical 4K Endoscope Camera Anti Glare BTH-9100

Better Health Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
  • Product Details
  • Company Profile

19in FHD Monitor Surgical 4K Endoscope Camera Anti Glare BTH-9100

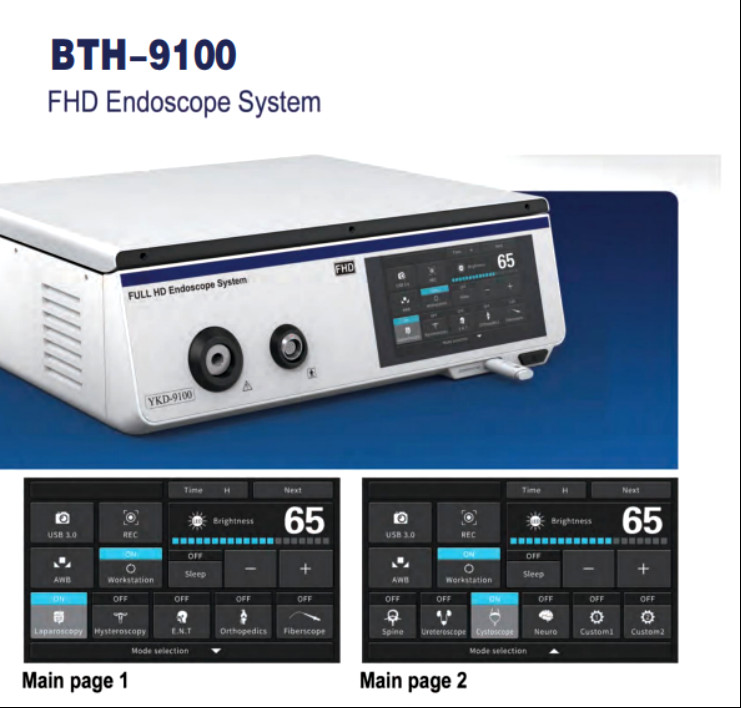

BTH-9100 FHD Endoscope System


Product Description

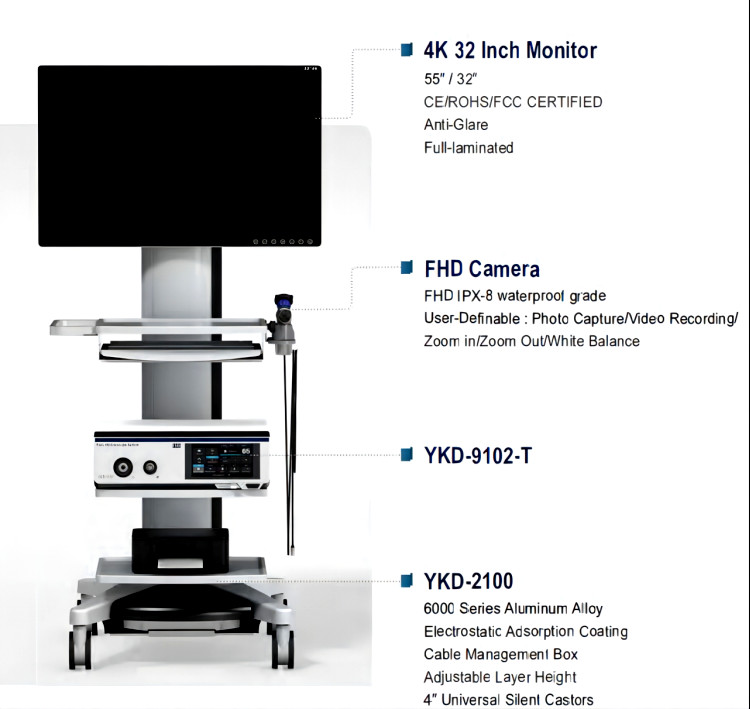

4K 32 Inch Monitor
  • 55" / 32"
  • CE/ROHS/FCC CERTIFIED
  • Anti-Glare
  • Full-laminated
FHD Camera
  • FHD IPX-8 waterproof grade
  • User-Definable : Photo Capture/Video Recording
  • Zoom in/Zoom Out White Balance
BTH-2100
  • 6000 Series Aluminum Alloy
  • Electrostatic Adsorption Coating
  • Cable Management Box
  • Adjustable Layer Height
  • 4" Universal Silent Castors

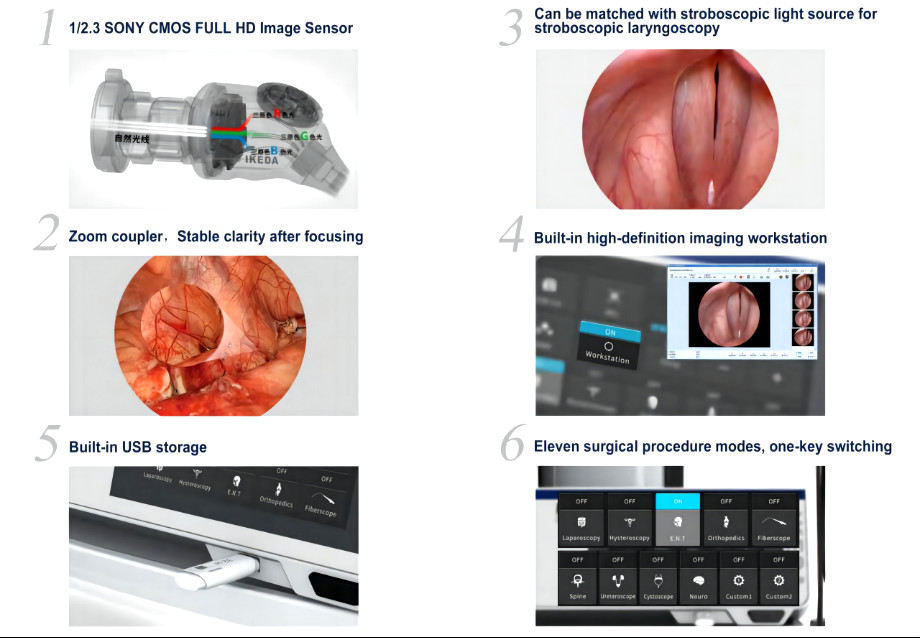

Product Features

  • 1/2.3 SONY CMOS FULL HD Image Sensor;
  • Can be matched with stroboscopic light source for stroboscopic laryngoscopy;
  • 19-inch FHD monitor, FHD camera head, and LED cold light source integrated;
  • Built-in high-definition imaging workstation, Examination/surgery mode, one-key switching;
  • Built-in USB FULL HD image storage, Integrated photo/Nideo recording system;
  • 11 surgical modes are optional;
  • IPX8 waterproof camera;

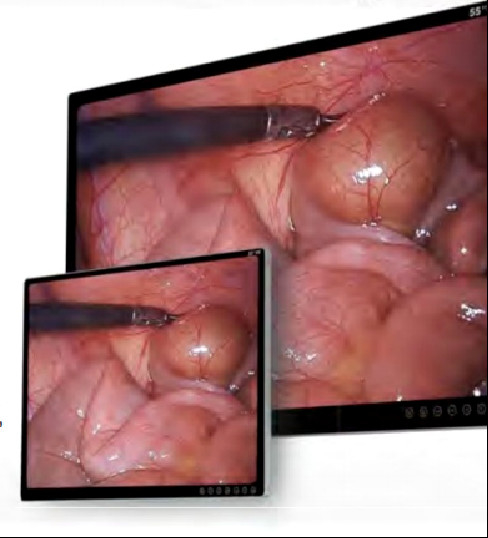

Monitor
3840×2160 utra-high-defntion image output, showing richer textures and more accurate tissue identification;
3840x2160 pixel image output, showing richer texture, more accurate tissue identification;
Wider color gamut, truly restore the color of organs and tissues,
and locate blood vessels, lymph nodes and nerves faster.

Technical Data
Camera headUHD imaging(3840×2160)
1/2.5 inch SONY CMOS
Full HD optical coupler C-mount standard
IPX8 waterproof
Voltage range (current consumption)100-240V(50 VA)
Frequency50-60 Hz
Device protection2x T3,15A
Video systemImage resolution: UHD 3840×2160
Horizontal resolution: 900 TVL
SNR: 60DB,Tolerance 20%
Scanning system: Progressive Scanning
White balance automatically
Screen size7 inch
Light sourceBuilt-in 80W LED cold light source
Recording(optional)Image format: JPG 1920×1080
Mpeg-4 (H.264 Codec); Image rate 60fps
Video format: Full HD 1920×1080;
Connection:USB
ConnectionsVideo out terminal:
1x HDMI 2.0(3840×2160)
1x DVI
1xCVBS
Protection class (acc.to IEC 60601-1)
Safety classBF
StandardIEC 60601-1-2
Device classification (EU) 20171745,annex VIII
FeaturesWhite balance
Freeze function
Zoom in/Zoom out
Touch Buttons/Touch Screen
USB storage
Photo captureVideo recording
LanguageChinese/English/Japanese/Korean/Spanish/German/Russian
Dimensions461(L)×395(W)×163(H)
Weight9.8KG

19in FHD Monitor Surgical 4K Endoscope Camera Anti Glare BTH-910019in FHD Monitor Surgical 4K Endoscope Camera Anti Glare BTH-9100

19in FHD Monitor Surgical 4K Endoscope Camera Anti Glare BTH-9100


19in FHD Monitor Surgical 4K Endoscope Camera Anti Glare BTH-9100

19in FHD Monitor Surgical 4K Endoscope Camera Anti Glare BTH-9100

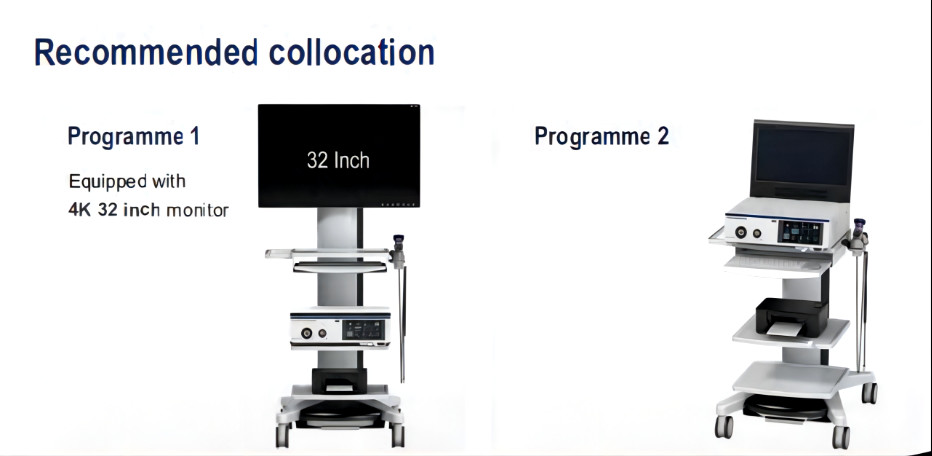

Product List

Video ProcessorBTH-9100
4K MonitorBTH-8155/BTH-8132
TrolleyBTH-2100
FHD Camera EndoscopeMatching
